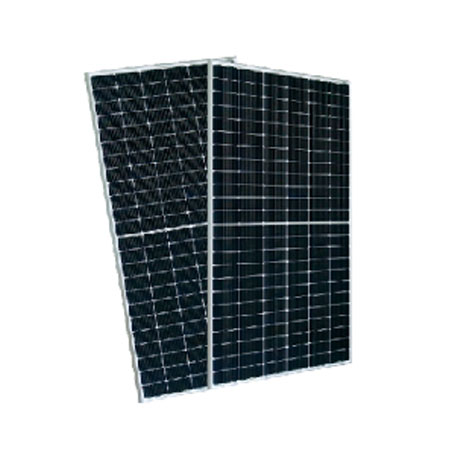

PERC單晶166組件系列
|
電氣參數(shù)(Electrical parameters) |
|||||||
|
最大功率(Maximum Power) |
... |
50w |
100w |
150w |
320w |
400w |
440w |
|
功率公差(Power Tolerance) |
0～+3 |
|
|
||||
|
最大工作電壓(Maximum Power Voltage) |
... |
18.5V |
18.0V |
20.1V |
30.2V |
36.9V |
40.3V |
|
最大工作電流(Maximum Power Current) |
... |
2.0A |
5.0A |
7.4A |
10.6A |
10.8A |
10.9A |
|
開路電壓(Open Circuit Voltage) |
... |
22.2V |
21.6V |
24.2V |
36.2V |
44.2V |
48.4V |
|
短路電流(Short Circuit Current) |
... |
2.8A |
5.8A |
7.7A |
11.0A |
11.3A |
11.3A |
|
機械參數(shù)(mechanical parameter) |
|
|
|||||
|
電池片類型(Cell Type) |
... |
單晶(Mono)166 9柵(9 grid) |
單晶(Mono)166 9柵(9 grid) |
單晶(Mono)166 9柵(9 grid) |
單晶(Mono)166 9柵(9 grid) |
單晶(Mono)166 9柵(9 grid) |
單晶(Mono)166 9柵(9 grid) |
|
組件尺寸(Dimensions) |
... |
825*365 |
810*700 |
1135*700 |
1560*1038 |
1926*1038 |
2094*1038 |
|
玻璃(Front Glass Thickness) |
... |
3.2鋼化玻璃 3.2 Tempered Glass |
3.2鋼化玻璃 3.2 Tempered Glass |
3.2鋼化玻璃 3.2 Tempered Glass |
3.2鋼化玻璃 3.2 Tempered Glass |
3.2鋼化玻璃 3.2 Tempered Glass |
3.2鋼化玻璃 3.2 Tempered Glass |
|
邊框(Frame) |
... |
30mm |
30mm |
30mm |
35mm |
35mm |
35mm |
|
接線盒(Junction Box) |
... |
MC4/10A |
MC4/10A |
MC4/15A |
MC4/20A |
MC4/20A |
MC4/20A |
